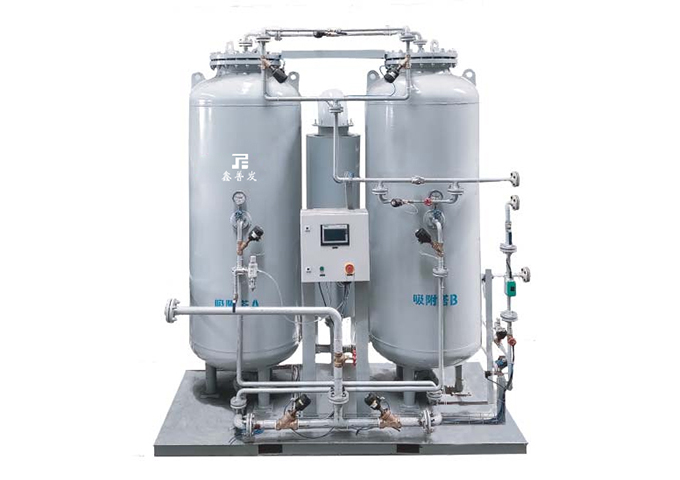

PSA PSA nitrogen generator

PSA PSA nitrogen production is a normal temperature gas separation technology that uses the adsorbent carbon molecular sieves to achieve the purpose of air separation with different adsorption capacities of oxygen and nitrogen under different pressures. Compared with traditional deep cold air, PSA nitrogen production is characterized by simple process, easy equipment manufacturing, strong adaptability, high degree of automation, low operating cost and low investment.

Parameters
Download

Model	Air filter buffer tank	Nitrogen process buffer tank	Flow value corresponding to oxygen content Nm ³/ h											Host size mm
Model	Air filter buffer tank	Nitrogen process buffer tank	5ppm	10ppm	50ppm	100ppm	500ppm	0.1%	0.5%	1%	2%	3%	5%	Host size mm
HYN2-15	0.2	0.4	3.5	4.5	6	7	10	11	15	18	22	25	28	900x920x1950
HYN2-30	0.4	0.8	7	9	12	14	19	22	30	36	43	49	56	1100x950x2100
HYN2-45	0.5	1.0	10	12	18	21	28	33	45	52	63	72	82	1400x1000x2100
HYN2-60	0.5	1.0	13	17	24	28	37	44	60	70	85	97	110	1500x1000x2300
HYN2-75	0.75	1.5	17	21	30	35	47	55	75	88	107	121	138	1500x1100x2200
HYN2-90	0.75	1.5	20	25	35	41	56	66	90	105	127	145	165	1700x1100x2150
HYN2-110	1	2	24	31	43	51	69	81	110	130	157	178	203	1800x1200x2400
HYN2-135	1.5	3	30	38	53	62	84	99	135	159	192	219	248	1900x1300x2500
HYN2-165	1.5	3	36	46	65	76	103	121	165	194	234	266	303	2000x1500x2600
HYN2-200	2	4	44	56	79	92	125	147	200	236	284	324	368	2100x1600x2750
HYN2-240	2	4	53	67	94	110	150	176	240	282	340	388	441	2200x1650x2850
HYN2-300	3	6	66	84	118	138	188	221	300	353	426	486	552	2400x1750x3100
HYN 2-400	4	8	88	112	158	184	250	294	400	471	568	648	736	2600x1700x3200
HYN2-500	5	10	110	140	197	230	313	368	500	589	710	810	920	2800x1900x3350
HYN2-600	6	12	132	168	236	276	375	441	600	706	852	971	1103	3000x2100x3650
HYN2-750	7	14	166	210	295	345	469	552	750	883	1065	1214	1379	3300x2200x3550
HYN2-900	8	16	199	252	354	414	563	662	900	1059	1278	1457	1655	3400x2400x3950
HYN2-1050	9	18	232	293	413	482	656	772	1050	1235	1490	1698	1930	3600x2600x3950
HYN2-1200	10	20	265	335	472	552	750	882	1200	1412	1703	1941	2206	3800x2850x4000
HYN2-1350	11	22	298	377	531	621	844	993	1350	1588	1916	2184	2482	4100x3000x3950
HYN2-1500	12	24	331	419	590	689	937	1103	1500	1764	2128	2426	2757	4350x3500x4200
HYN2-1700	13	26	375	475	669	781	1063	1250	1700	2000	2413	2750	3125	4600x3700x4100
HYN2-1900	14	28	419	531	747	873	1187	1397	1900	2235	2696	3073	3492	5000x3800x4000
HYN2-2100	15	30	463	587	826	965	1312	1544	2100	2470	2980	3397	3860	5000x3800x4250

Description of design conditions:
• The above data sheet shows the inlet pressure of compressed air at 0.7MPa and 20. (2) Calculated at inlet air temperature (reference conditions of gas unit state: 20 ℃, 1013 mbar (a), relative humidity 0%, altitude 0 m)
• If the inlet air pressure, inlet air temperature, ambient temperature, humidity and altitude conditions of the user change, the above data sheet must be corrected. For example, if the inlet pressure of the same type of nitrogen generator is increased, the performance will be improved; On the contrary, the performance will decrease with the increase of intake air temperature, ambient humidity and altitude. Please consult the technicians of Haoyu Company for details
• The compressed air in front of the absorption tower of the nitrogen generator must meet the ISO 8573-1:20101.2.1 level, which is very important to prevent the molecular sieve from entering oil and water
• The dimensions and weights in the above table do not include air process buffer tank and nitrogen process buffer tank, and the actual dimensions and weights are subject to the final design
• The air buffer tank and nitrogen buffer tank shall be selected with proper volume, and the distance from the nitrogen generator shall not exceed 10m.
