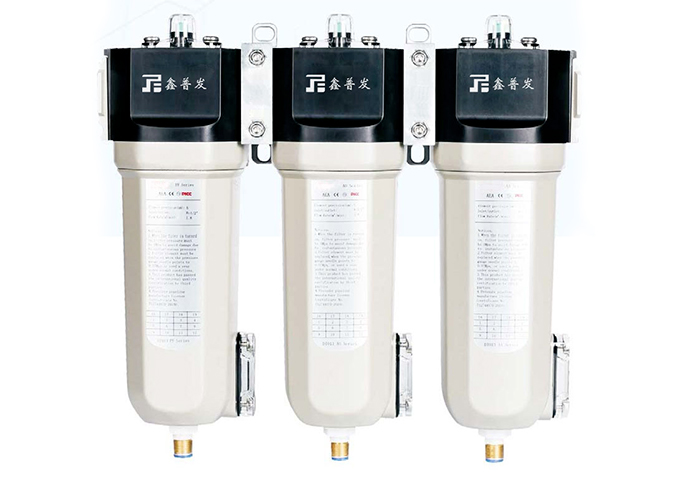

DT series air filter

The filter has a variety of filtering grades, which can meet different filtering requirements, including general filter, high efficiency filter, oil removal filter, oil vapor adsorption filter, etc. Compressed air contains different kinds of pollutants, which must be treated and reduced to an acceptable level to ensure the safe, efficient and economic operation of the compressed air system. Most industrial compressed air applications operate at pressures of 7, 10 or 13 bar, and purification equipment is usually designed around these operating pressures. However, some application industries need higher working pressure, which will lead to the increase of pollutant concentration. Most industrial compressed air applications operate at pressures of 7, 10 or 13 bar, and purification equipment is usually designed around these operating pressures. However, some application industries need higher working pressure, which will lead to the increase of pollutant concentration.

ModelPipe diameterFlowOutline specification (mm)
L/Sm3/mincfmWDHABC (Reserved space for installation)
DT009RC1/4"5.00.310.680.669.0224.124.6173.950.5
DT010RC3/8"10.00.621.280.669.0224.124.6173.950.5
DT012RC3/4"25.11.553.0108.293.3275.330.1220.653.3
DT013RC1/2"30.11.863.5108.293.3315.330.1260.653.3
DT014RC3/4"33.42.070.6108.293.3315.330.1260.653.3
DT015RC3/4"46.82.898.8133.0113.9399.640.7291.059.6
DT016RC1"60.13.6127.1133.0113.9399.640.7291.059.6
DT017RC1"80.24.8169.4133.0113.9468.440.7359.859.6
DT018RC1-1/2"100.26.0211.8133.0113.9468.440.7359.859.6
DT019RC1-1/2"125.37.5264.8133.0113.9533.740.7425.359.6
DT020RC2"200.012.0424.0170.0158.3783.152.9623.059.6
DT021RC2"266.716.0565.3170.0158.31065.452.9945.359.6
DT022RC2-1/2"316.719.0671.3170.0158.31065.452.9945.359.6
Technical requirements:Maximum working pressure: 10 barg; Maximum operating temperature: 80 ° C; Minimum operating temperature: 1.5 °C


PressureBarg12345678910111213141516
Psig152944597387100116131145160174189203219232
Correction factor0.380.530.650.760.850.931.001.071.131.191.231.311.361.411.461.51
ModelPipe diameterFlowOutline specification (mm)
L/Sm3/mincfmWDHABC (Reserved space for installation)
DT009RC1/4"5.00.310.680.669.0224.124.6173.950.5
DT010RC3/8"10.00.621.280.669.0224.124.6173.950.5
DT012RC3/4"25.11.553.0108.293.3275.330.1220.653.3
DT013RC1/2"30.11.863.5108.293.3315.330.1260.653.3
DT014RC3/4"33.42.070.6108.293.3315.330.1260.653.3
DT015RC3/4"46.82.898.8133.0113.9399.640.7291.059.6
DT016RC1"60.13.6127.1133.0113.9399.640.7291.059.6
DT017RC1"80.24.8169.4133.0113.9468.440.7359.859.6
DT018RC1-1/2"100.26.0211.8133.0113.9468.440.7359.859.6
DT019RC1-1/2"125.37.5264.8133.0113.9533.740.7425.359.6
DT020RC2"200.012.0424.0170.0158.3783.152.9623.059.6
DT021RC2"266.716.0565.3170.0158.31065.452.9945.359.6
DT022RC2-1/2"316.719.0671.3170.0158.31065.452.9945.359.6
Technical requirements:Maximum working pressure: 10 barg; Maximum operating temperature: 80 ° C; Minimum operating temperature: 1.5 °C


PressureBarg12345678910111213141516
Psig152944597387100116131145160174189203219232
Correction factor0.380.530.650.760.850.931.001.071.131.191.231.311.361.411.461.51
